GPS Tracker

Curfew Base Station

Curfew Base Station

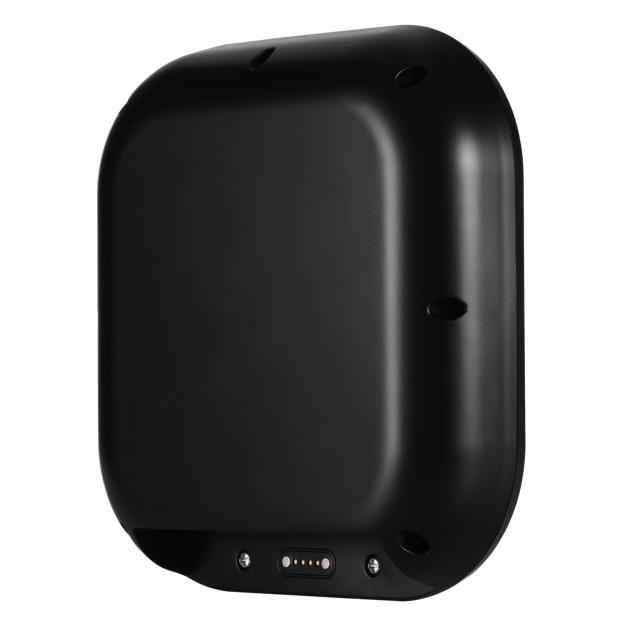

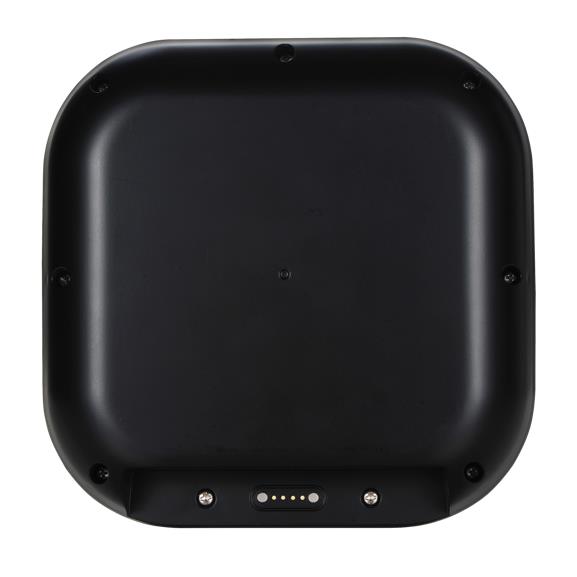

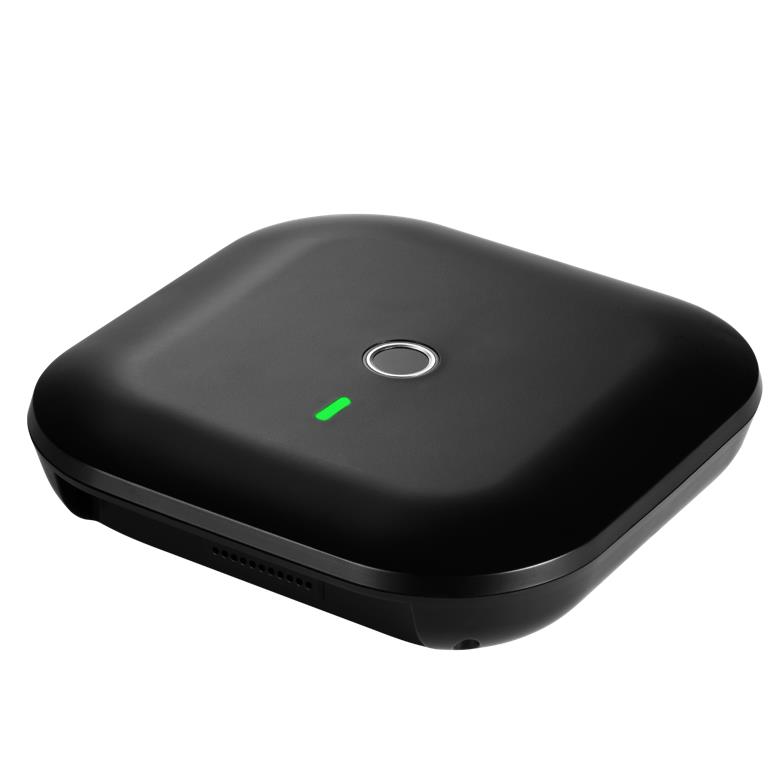

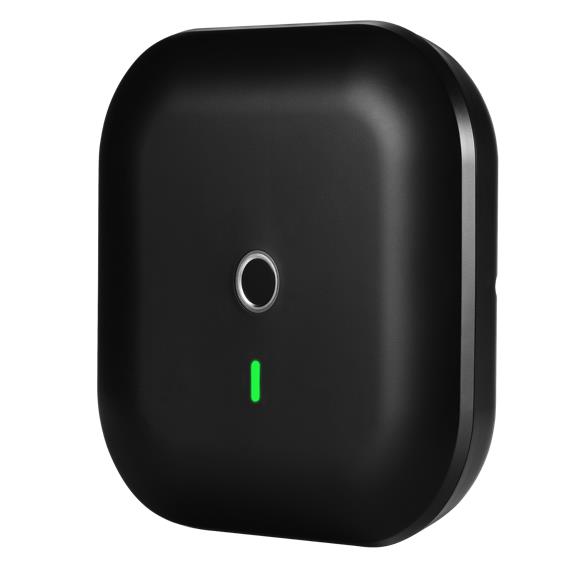

The DDX15 curfew base station is a professional-grade ranging product designed for community corrections, parole, residential surveillance, Alzheimer's, mental patients and other special industry tracking applications. It obtains the current position of the ankle through two-way ranging with the designated GPS ankle, and uses the 4G wireless network to send the ranging data to the server to track the ankle. The base station has a built-in motion sensor, once it moves, it will immediately alarm.

Vedio User's manual

Funtions

No.

Name

Description

1

Two-way ranging

The curfew base station can realize two-way ranging with the surrounding ankle

2

data transmission

The curfew base station has a built-in 4G communication module, which can upload the ranging data to the system in real time

3

Vibration alarm

After the base station is bound to the ankle, once the base station moves, the system immediately alarms

4

Fingerprint recognition

Built-in fingerprint module in the base station, which can realize timed sign-in

5

Two-way conversation

The administrator can dial the built-in SIM card number of the base station at any time, and the base station automatically answers

6

Remote monitoring

The administrator can remotely monitor the surrounding sounds of the base station through commands

7

Low power alarm

When the terminal power is less than 20%, a low power alarm is generated

8

Remote upgrade

Yes


Specification

No.

Name

Parameter

1

Model

DDX15

2

High-precision ranging

Built-in UWB high-precision ranging module, ranging accuracy up to 0.3 meters

3

Built-in battery

Built-in rechargeable 1000mAh polymer lithium ion battery

4

Voltage

DC 5V

5

Charging time

2 hours

6

Battery standby time

36 hours standby time

7

Material

Environmentally Friendly Plastic

8

Size

155*155*38mm (length, width and height)

9

Weight

About 80g

15

working environment

Working temperature: -30℃+60℃; Working humidity: 10%90%RH, no condensation
