Portable GPS Trackers

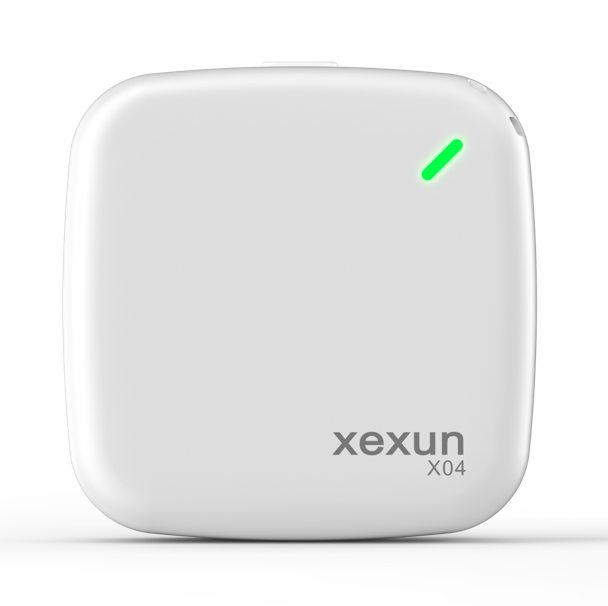

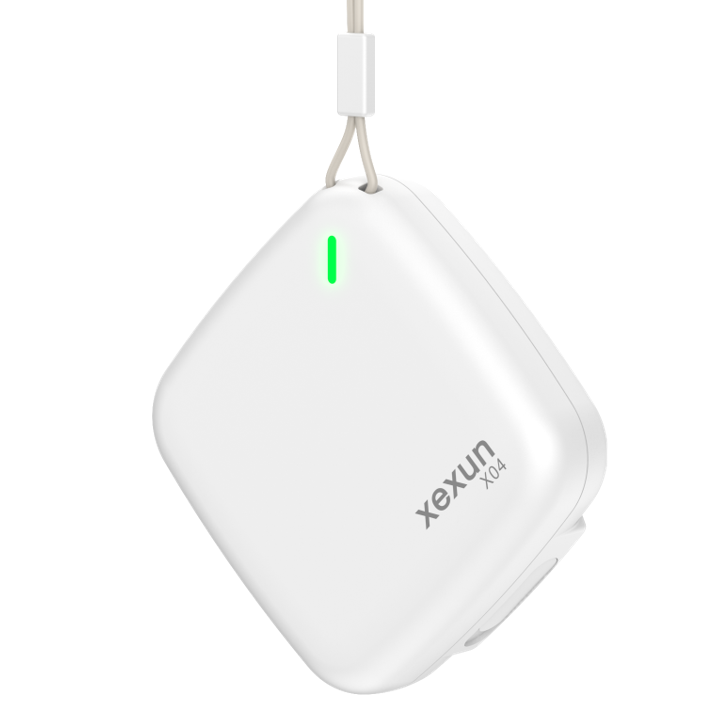

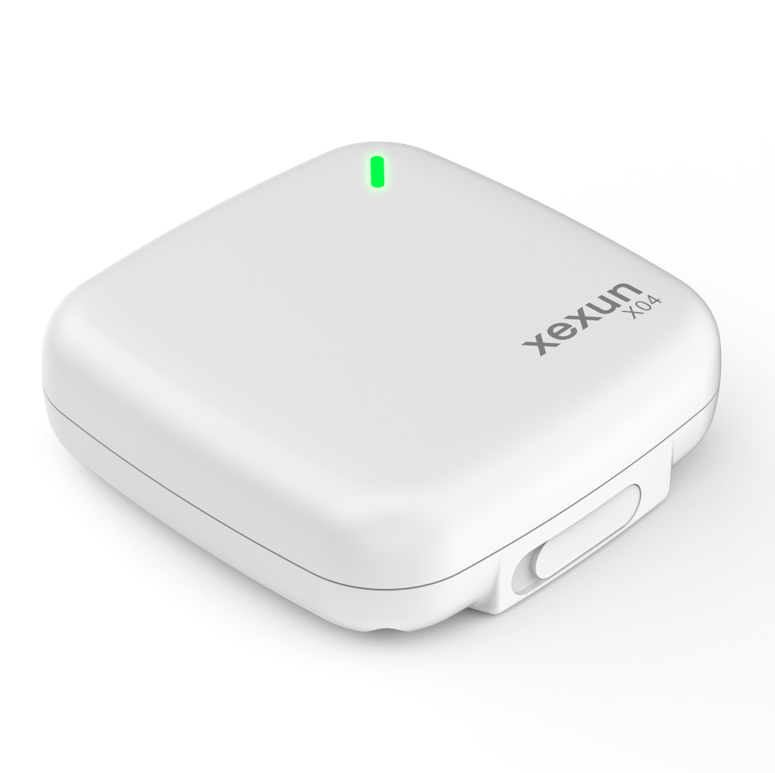

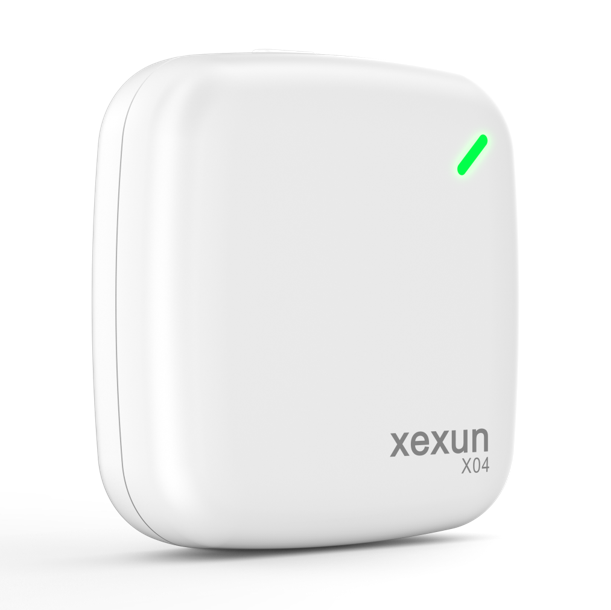

Mini GPS Tracker

Mini GPS Tracker

X04

Mini GPS tracker is a portable professional tracking product. The product collects location information such as GPS/Beidou/WIFI/LBS, and sends the location information to the server through the 4G wireless network to achieve target tracking. The product combines a powerful cloud tracking management platform and mobile APP, which is easy to use.

Vedio User's manual

Funtions

No.

Name

Description

1

Real-time tracking

You can check the real-time and accurate position of the terminal at any time, and use different icons to mark different types

2

Timing tracking

The terminal can automatically upload location information according to the set interval

3

Historical track

You can query the historical track of the terminal at any time

4

Virtual fence

Any area can be set as a virtual fence, and a period of time can be added to the fence. Once the terminal enters and exits the fence during this period, the system immediately alarms

5

Blind spot tracking

The terminal can be tracked but when it is in the blind area of the network, it can automatically store the tracking data and upload it automatically when the network signal is normal

6

Emergency alarm

In case of emergency, long press the SOS button, the emergency alarm will be triggered automatically

7

Remote listening

The terminal has a built-in voice module for remote real-time listening

8

Low power alarm

When the terminal power is less than 20%, a low power alarm will be generated

9

Remote upgrade

Yes


Specification

No.

Name

Parameter

1

Model

X04

2

Tracking method

GPS/Beidou/WIFI/LBS hybrid tracking

3

Tracking accuracy

<10m (This data is for reference only, the tracking error is related to the terrain and environment of the terminal area)

4

Communications network

2G/3G/4G wireless network

5

Built-in battery

Built-in rechargeable 600mAh polymer lithium ion battery

6

Voltage

DC 5V

7

Charging time

2 hours

8

Standby time

5 days standby time (tracking once per hour)

9

Material

Environmentally Friendly Plastic

10

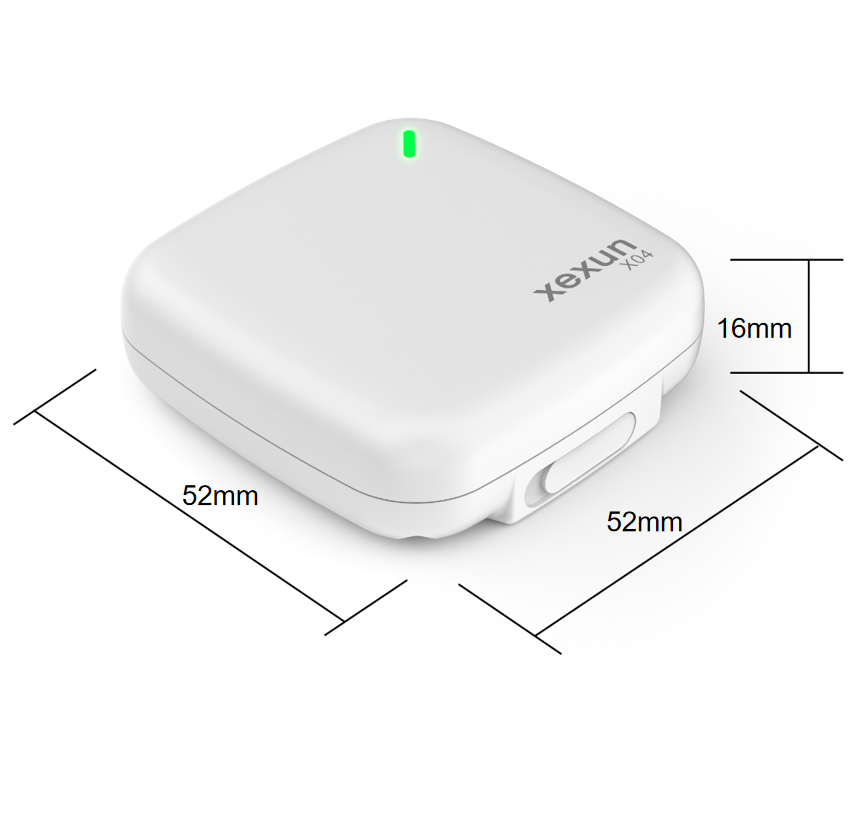

Size

51*51*16mm (length*width*height)

11

Weight

About 45g

12

Operating temperature

-20℃~+75℃

13

Storage temperature

-40℃~+85℃


Video

Related

This small GPS tracker is an industrial-grade GPS tracking device designed for reliable location monitoring across a wide range of applications. Supporting GPS, BeiDou, GLONASS, Galileo, A-GPS and LBS positioning technologies, it provides accurate location information and real-time tracking. With 4G wireless connectivity, the device transmits location data to a secure server, enabling remote monitoring, location management and GPS tracking through a cloud-based platform and mobile app.

With a rechargeable battery and powerful magnetic mount, this compact GPS tracking device is easy to install and suitable for personal and family safety, personnel monitoring, vehicle security, fleet and logistics management, and finance and insurance applications.

Through the GPS/Beidou/WIFI/LBS location information uploaded by the terminal, the system can realize the real-time tracking of the target, historical track query, virtual fence alarm and other functions. Widely used in vehicle management, personnel tracking, material tracking and other industries, the system design is simple and easy to use.

This industrial-grade 4G OBD GPS tracker is designed for real-time vehicle location tracking, health monitoring and fleet management. Supporting GPS, BeiDou, GLONASS, Galileo, A-GPS and LBS positioning, it transmits location data through 4G networks for accurate remote vehicle tracking and location management.

The OBD vehicle tracker supports the ISO 15765-4 CAN protocol to read vehicle data for diagnostics and status monitoring. It is ideal for vehicle security and management, fleet and logistics tracking, vehicle maintenance and health monitoring, and finance and insurance applications.




Long standby GPS tracker is an industrial-grade tracking product designed for the location management of automobiles, motorcycles, and electric vehicles. The device supports GPS, BeiDou, GLONASS, Galileo, A-GPS and LBS positioning technologies to provide accurate location information and real-time tracking. Through a 4G wireless network, tracking data is transmitted to a secure server, enabling remote vehicle tracking and location management. The product uses powerful magnets, easy to install, combined with a powerful cloud tracking management platform and mobile phone APP, rechargeable power supply design, easy to use, and escort all types of motor vehicles throughout the day.

This small GPS tracker is an industrial-grade GPS tracking device designed for reliable location monitoring across a wide range of applications. Supporting GPS, BeiDou, GLONASS, Galileo, A-GPS and LBS positioning technologies, it provides accurate location information and real-time tracking. With 4G wireless connectivity, the device transmits location data to a secure server, enabling remote monitoring, location management and GPS tracking through a cloud-based platform and mobile app.

With a rechargeable battery and powerful magnetic mount, this compact GPS tracking device is easy to install and suitable for personal and family safety, personnel monitoring, vehicle security, fleet and logistics management, and finance and insurance applications.
