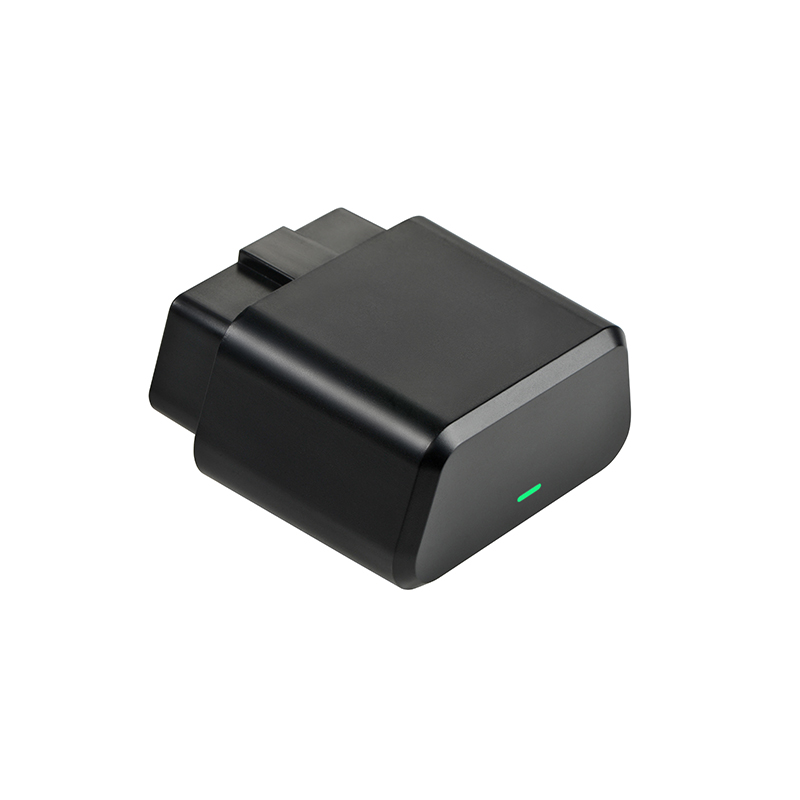

X24

This industrial-grade 4G OBD GPS tracker is designed for real-time vehicle location tracking, health monitoring and fleet management. Supporting GPS, BeiDou, GLONASS, Galileo, A-GPS and LBS positioning, it transmits location data through 4G networks for accurate remote vehicle tracking and location management.

The OBD vehicle tracker supports the ISO 15765-4 CAN protocol to read vehicle data for diagnostics and status monitoring. It is ideal for vehicle security and management, fleet and logistics tracking, vehicle maintenance and health monitoring, and finance and insurance applications.




Vedio User's manual

Funtions

No.

Function Name

Description

1

Real time tracking

The system can view the location of the terminal in real-time through an app (iOS/Android) or PC

2

Historical route

The system supports viewing the historical route of the terminal at any time period

3

Virtual fence

The system can customize the virtual fence area, and an alarm will be triggered when the terminal enters or exits the fence

4

Alarm management

The system supports alarms for entering and exiting fences, low power, and movement, and supports custom prompt sounds

5

Automatic sleep mode

The terminal automatically enters sleep mode when it is stationary to save power

6

Blind spot supplementary transmission

The terminal supports storing tracking and alarm data in case of network interruption, and automatically resends it after the connection is restored

7

Thermal map

The system can generate a historical activity thermal map of the terminal, allowing you to view the daily activity areas of the terminal

8

Remote upgrade

The system supports firmware OTA updates

9

Vehicle data monitoring

The terminal can read data that complies with the ISO 15765-4 CAN standard protocol (for most global vehicle models since 2008), including but not limited to:
Vehicle speed, duration after fault code appears, driving time and mileage after MIL light is on;
Engine speed, running time, oil temperature, coolant temperature;
Accelerator pedal position, fuel level, intake flow rate, atmospheric pressure, ambient temperature;
The remaining power of the hybrid battery, etc.
(Actual readable data varies depending on the vehicle brand, model, and manufacturing time)


Specification

No.

Name

Parameter

1

Product Name

X24 OBD GPS Tracker

2

Model

X24

3

Tracking methods

GPS/BDS/Galileo/GLONASS/A-GPS/LBS/WiFi/Bluetooth

4

Tracking accuracy

The terminal can achieve maximum accuracy of 3 meters in open environments

5

Tracking frequency

The terminal tracks once every minute in its default motion state, Automatic sleep mode when stationary, and supports custom settings

6

Tracking trigger

The terminal supports motion triggered tracking or timed tracking

7

Location information

Location information includes IMEI, time, serial number, latitude and longitude, speed, number and signal of satellites, 4G signal, battery level, charging status, disassembly alarm, etc

8

Data transmission

4G network

9

SIM card

Built in Nano SIM card

10

Battery

Built in 180mAh rechargeable battery

11

Charging interface

OBD

12

Indicator light

Power indicator light

13

Shell material

ABS+PC environmentally friendly plastic

14

Protection level

IP65

15

Size

47 × 47 × 24 mm (length × width × thickness)

16

Weight

40g

17

Terminal number

The terminal is uniquely identified by the IMEI number of the communication module

18

Tracking Platform

We provide a tracking management platform that supports API push data to third-party systems

19

Working temperature

-20 ℃~60 ℃
