GPS ankle Bracelet

GPS ankle Bracelet

DDX14

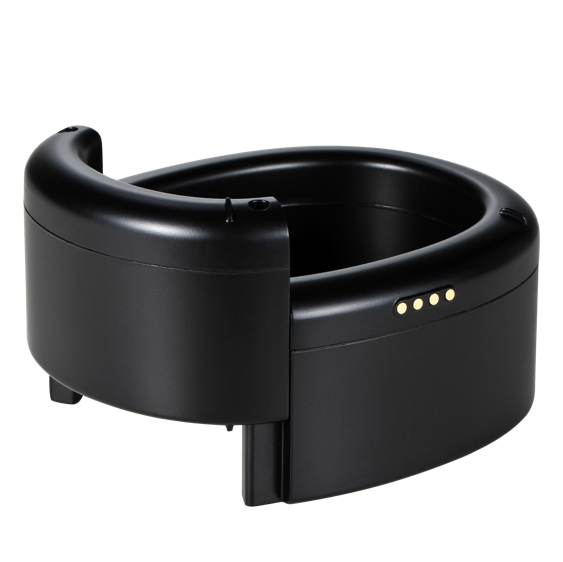

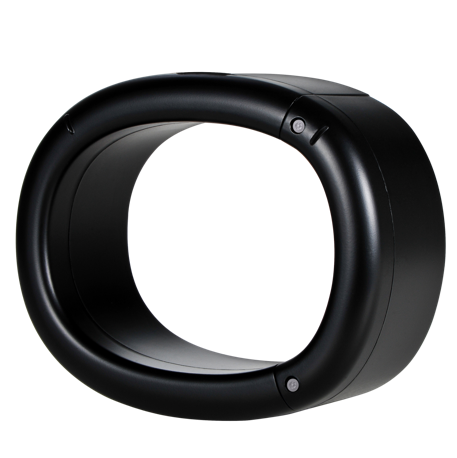

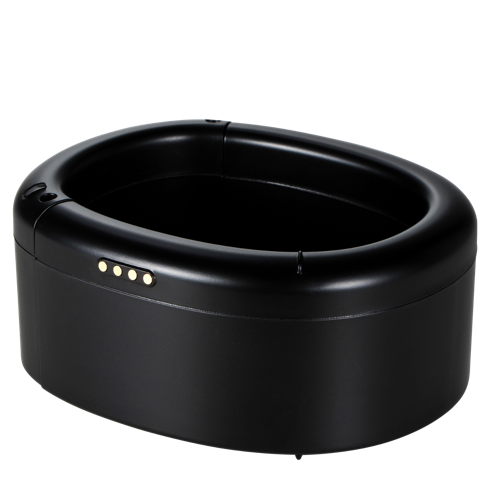

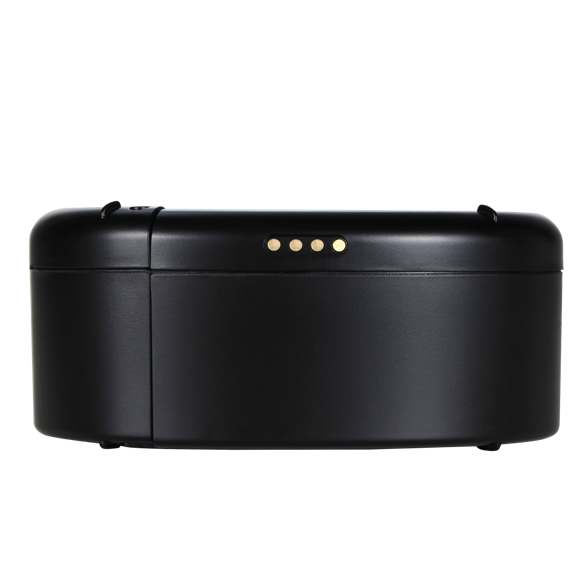

GPS Ankle is a professional tracking product designed for community correction, parole, residential surveillance, Alzheimer's, mental patients and other special industry tracking applications. It includes GPS ankle, Curfew base station (optional) and management system. The GPS ankle collects GPS/Beidou/WiFi/LBS tracking information and uses the 4G wireless network to send the tracking information to the server to track the ankle. The ankle has a built-in conductive circuit, which will alarm immediately after disassembly. The ankle also has a built-in UWB high-precision ranging module (optional), combined with the Curfew base station, up to centimeter-level ranging accuracy, to determine whether the tracked target is in the designated area. The Curfew base station also has a built-in UWB high-precision ranging module. Once the distance between the ankle and the base station exceeds the preset threshold, the system will immediately alarm. The base station has a built-in motion sensor. Once the base station is moved, the system will immediately alarm.

Vedio User's manual

Funtions

No.

Name

Description

1

Real-time tracking

GPS+Beidou+WiFi+LBS hybrid tracking, you can check the real-time and accurate position of the terminal at any time, and use different icons to mark different roles

2

Timing tracking

The terminal can automatically upload location information according to the set interval

3

Historical track

You can query the historical track of the terminal at any time

4

Virtual fence

Any area can be set as a virtual fence, and a period of time can be added to the fence. Once the terminal enters and exits the fence during this period, the system immediately alarms

5

Route planning

The administrator can pre-set the terminal walking route and time period. Once deviated from the designated route, the system will immediately alarm

6

Anti-tampering alarm

The terminal has a built-in conduction circuit, once it is removed, the system will alarm immediately

7

Blind spot tracking

The terminal can store the location and alarm information when the mobile network is interrupted, and upload it automatically after the network signal is restored.

8

High-precision ranging

The terminal has a built-in UWB high-precision ranging module, which can realize high-precision ranging with the matching ranging base station. Once the preset threshold is exceeded, the over-range alarm will be triggered immediately.

9

Low power alarm

When the terminal power is less than 20%, a low power alarm is generated

10

Remote upgrade

Yes


The ankle can be used in conjunction with the Curfew base station or used alone, there is no ranging function when used alone


Specification

No.

Name

Parameter

1

Model

DDX14

2

Tracking method

GPS/Beidou/WIFI/base station hybrid tracking

3

Tracking accuracy

<10m (This data is for reference only, the tracking error is related to the terrain and environment of the terminal area)

4

High-precision ranging

Built-in UWB high-precision ranging module, ranging accuracy up to 0.3 meters

5

Ranging frequency

3.75-4.25GHz

6

Ranging distance

In an open environment, the maximum distance can reach 300 meters

7

Communications network

2G/3G/4G wireless network

8

Built-in battery

Built-in rechargeable 2250mAh polymer lithium ion battery

9

Charging method

The buckle-type wireless dedicated mobile power bank, first fully charge the buckle-type mobile power bank, and then buckle the mobile power bank on the ankle to charge the ankle. When charging, there is no need to connect the power cord, the wearer can walk freely

10

Voltage

DC 5V

11

Charging time

2 hours

12

Standby time

36 hours (tracking once in 10 seconds)

13

Material

Environmentally Friendly Plastic

14

Waterproof

IP68 level

15

Size

119*98*50mm (length, width and height)

16

Weight

About 179g

17

Working environment

Working temperature: -30℃+60℃; Working humidity: 10%90%RH, no condensation
