GPS Tracker

GPS Tracker Card

GPS Tracker Card

X06

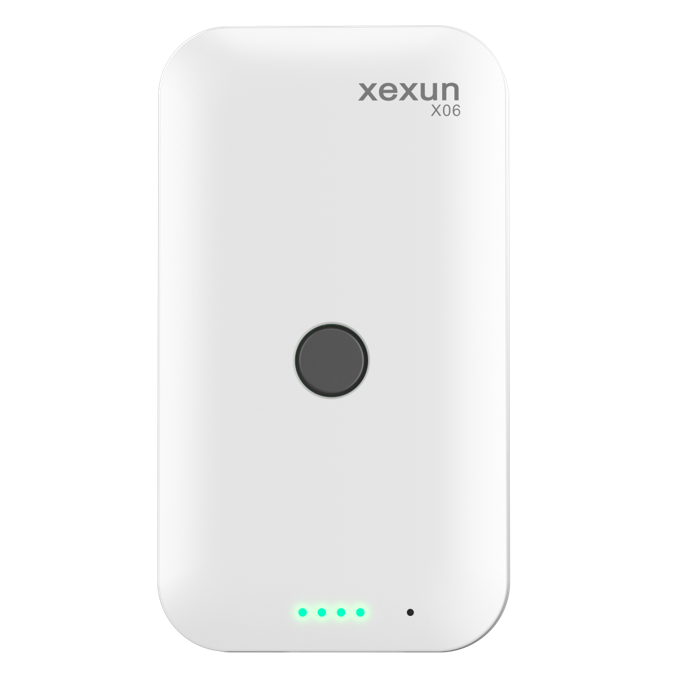

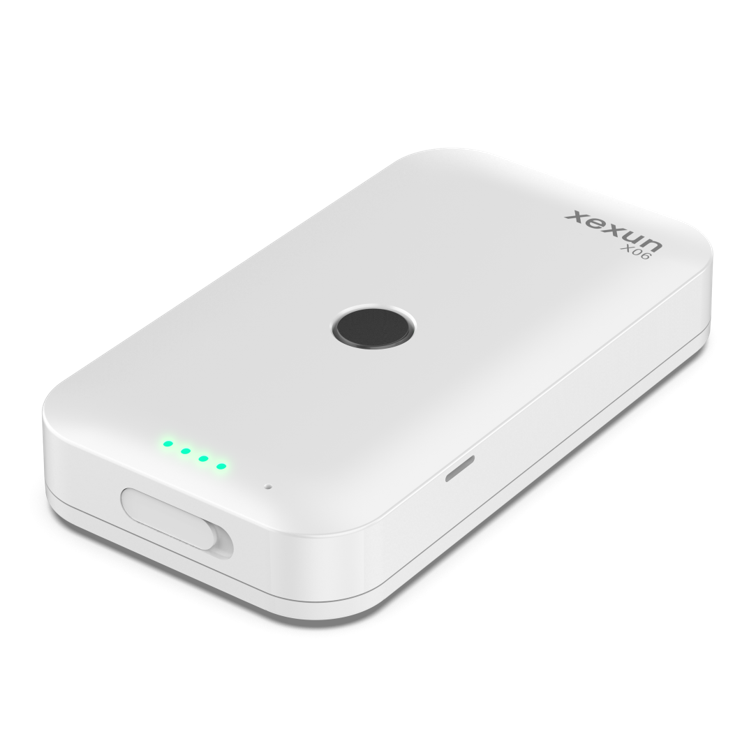

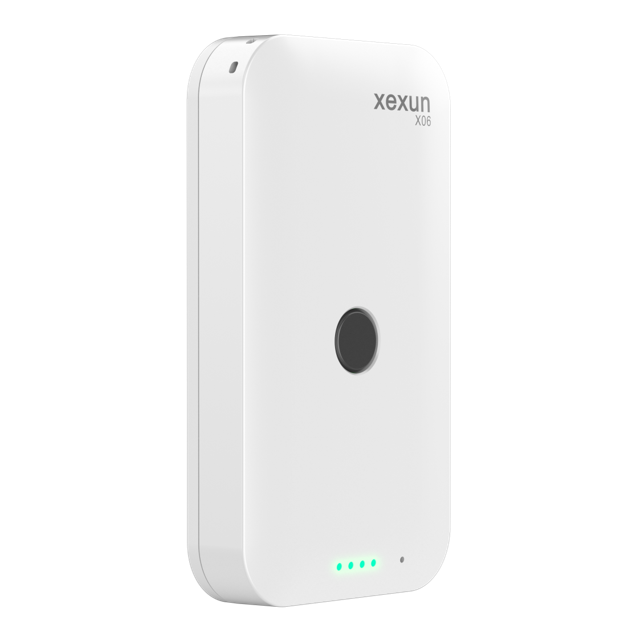

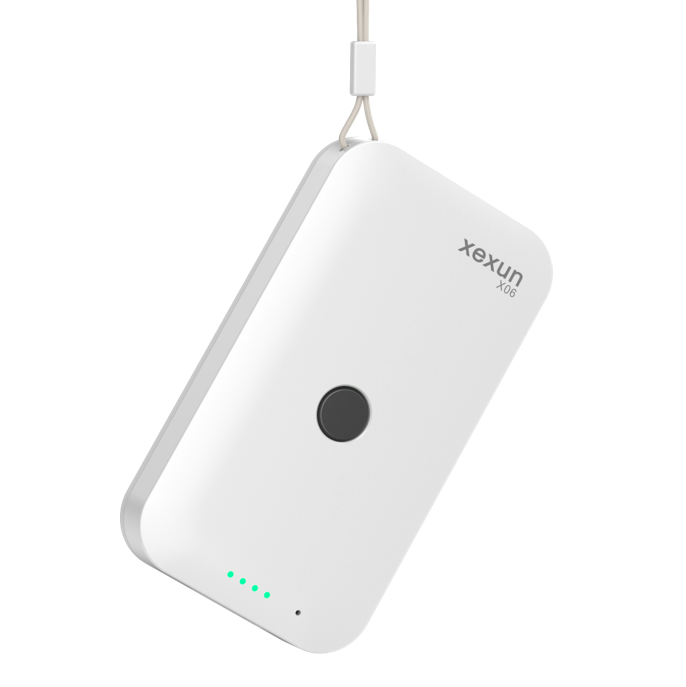

GPS tracking card is a professional tracking product designed for the location management of specific groups such as students/elderly/company employees. The product collects location information such as GPS/Beidou/WIFI/LBS, and sends the location information to the server through the 4G wireless network to achieve target tracking. The product combines a powerful cloud tracking management platform and mobile APP, which is easy to use.

Vedio User's manual

Funtions

No.

Name

Description

1

Real-time tracking

You can check the real-time and accurate position of the terminal at any time, and use different icons to mark different types

2

Timing tracking

The terminal can automatically upload location information according to the set interval

3

Historical track

You can query the historical track of the terminal at any time

4

Virtual fence

Any area can be set as a virtual fence, and a period of time can be added to the fence. Once the terminal enters and exits the fence during this period, the system immediately alarms

5

Blind spot tracking

When the terminal can track but is in the blind area of the network, it can automatically store the tracking data and upload it automatically when the network signal is normal

6

Emergency alarm

In case of emergency, long press the SOS button, the emergency alarm will be triggered automatically.

7

Two-way conversation

The terminal has a built-in voice module, so you can talk directly with the preset number at any time.

8

Low power alarm

When the terminal power is less than 20%, a low power alarm is generated

9

Remote upgrade

Yes


Specification

No.

Name

Parameter

1

Model

X06

2

Tracking method

GPS/Beidou/WIFI/LBS hybrid tracking

3

Tracking accuracy

<10m (This data is for reference only, the tracking error is related to the terrain and environment of the terminal area)

4

Communications network

2G/3G/4G wireless network

5

Built-in battery

Built-in rechargeable 1000mAh polymer lithium ion battery

6

Voltage

DC 5V

7

Charging time

2 hours

8

Standby time

5 days standby time (tracking once per hour)

9

Material

Environmentally Friendly Plastic

10

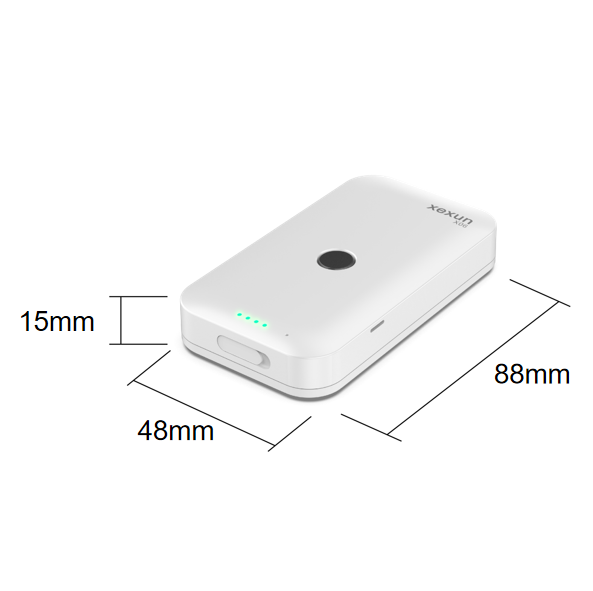

Size

88*49*15mm (length*width*height)

11

Weight

About 74g

12

Operating temperature

-20℃~+75℃

13

Storage temperature

-40℃~+85℃
