Portable GPS Trackers

Magnetic Vehicle GPS Tracker

Magnetic Vehicle GPS Tracker

X22

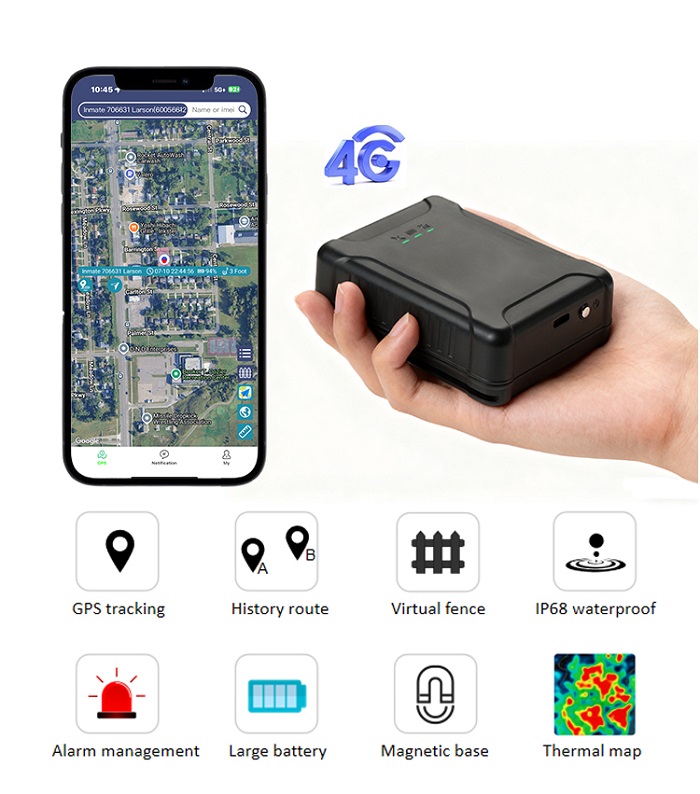

Long standby GPS tracker is an industrial-grade tracking product designed for the location management of automobiles, motorcycles, and electric vehicles. The device supports GPS, BeiDou, GLONASS, Galileo, A-GPS and LBS positioning technologies to provide accurate location information and real-time tracking. Through a 4G wireless network, tracking data is transmitted to a secure server, enabling remote vehicle tracking and location management. The product uses powerful magnets, easy to install, combined with a powerful cloud tracking management platform and mobile phone APP, rechargeable power supply design, easy to use, and escort all types of motor vehicles throughout the day.

Vedio User's manual

Funtions

No.

Name

Description

1

Real time tracking

The system can view the location of the terminal in real-time through an app (iOS/Android) or PC

2

Historical route

The system supports viewing the historical route of the terminal at any time period

3

Virtual fence

The system can customize the virtual fence area, and an alarm will be triggered when the terminal enters or exits the fence

4

Alarm management

The system supports alarms for entering and exiting fences, low power, and movement, and supports custom prompt sounds

5

Automatic sleep mode

The terminal automatically enters sleep mode when it is stationary to save power

6

Blind spot supplementary transmission

The terminal supports storing tracking and alarm data in case of network interruption, and automatically resends it after the connection is restored

7

Thermal map

The system can generate a historical activity thermal map of the terminal, allowing you to view the daily activity areas of the terminal

8

Remote upgrade

The system supports firmware OTA updates


Specification

Name

Parameter

Model

X22

Tracking methods

GPS/BDS/Galileo/GLONASS/A-GPS/LBS/WiFi/Bluetooth

Tracking accuracy

The terminal can achieve maximum accuracy of 3 meters in open environments

Tracking frequency

The terminal tracks once every minute in its default motion state, Automatic sleep mode when stationary, and supports custom settings

Tracking trigger

The terminal supports motion triggered tracking or timed tracking

Location information

Location information includes IMEI, time, serial number, latitude and longitude, speed, number of satellites and signals, 4G signal, battery level, charging status, etc

Data transmission

4G network

SIM card

Built in Nano SIM card

Battery

Built in 10000mAh rechargeable battery

Charging interface

Type C

Charging time

approximately 5 hours

Battery life

about 50 days (calculated based on 8 hours of movement per day, poor communication signal and GPS environment will shorten the battery life)

Indicator lights

Power, 4G, and GPS indicator lights

Shell material

ABS+PC environmentally friendly plastic

Protection level

IP68

Size

89 * 69 * 29 mm (length x width x thickness)

Weight

225g

Terminal number

The terminal uses the IMEI number of the communication module as the unique terminal number

Tracking Platform

We provide a tracking management platform that supports API push data to third-party systems

Working temperature

-20 ℃~60 ℃
