GPS Tracker

Tamper-proof GPS watch

Tamper-proof GPS watch

DDX04

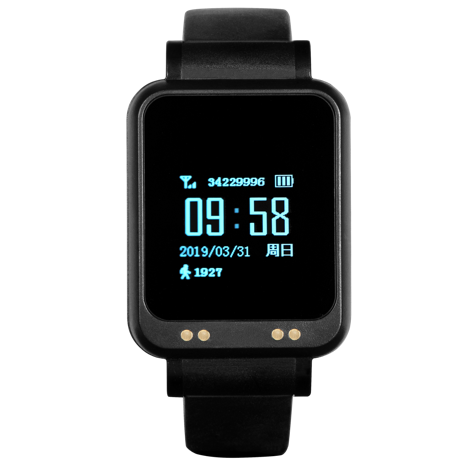

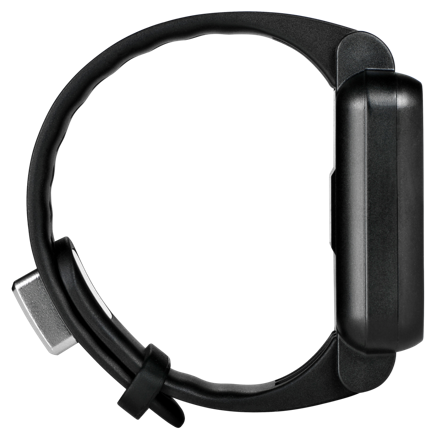

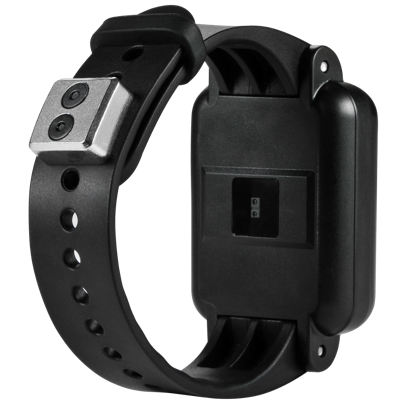

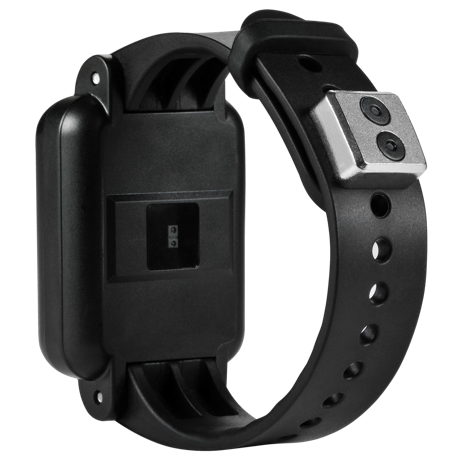

The anti-tampering GPS tracking watch is a professional GPS tracking product, designed for special population management such as community correction, parole, residential surveillance, home isolation, Alzheimer's, and mental patients. The watch collects GPS/Beidou/WiFi/LBS tracking information, and sends the tracking information to the server through the 4G wireless network to realize the tracking of the watch. The product has a built-in tamper-proof sensor, which will alarm immediately after disassembly. The product protection level reaches IP68, simple operation and convenient use.

Vedio User's manual

Funtions

No.

Name

Description

1

Real-time tracking

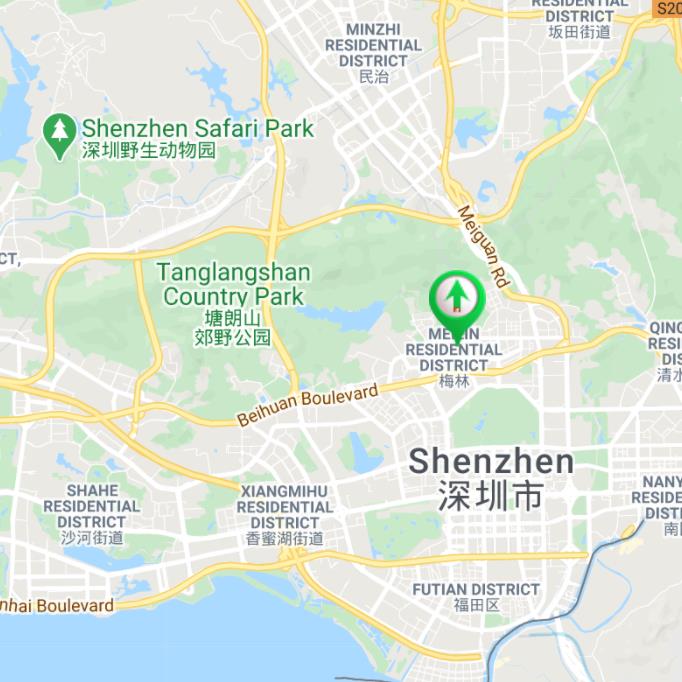

GPS+Beidou+WiFi+LBS hybrid tracking, you can check the real-time and accurate position of the terminal at any time, and use different icons to mark different roles

2

Timing tracking

The terminal can automatically upload location information according to the set interval

3

Historical track

You can query the historical track of the terminal at any time

4

Virtual fence

Any area can be set as a virtual fence, and a period of time can be added to the fence. Once the terminal enters and exits the fence during this period, the system immediately alarms

5

Message receiving

The terminal can receive messages and setting instructions pushed by the platform

6

Anti-tampering alarm

The strap has a built-in conduction circuit, once it is removed, the system will alarm immediately

7

Heart rate

Built-in heart rate sensor, you can monitor vital signs data at any time

8

Motion sensor

Built-in motion sensor, you can monitor the wearer’s daily step count at any time

9

Low power alarm

When the terminal power is less than 20%, a low power alarm is generated

10

Remote upgrade

Yes


Specification

No.

Name

Parameter

1

Model

DDX04/T

2

Tracking method

GPS/Beidou/WIFI/LBS hybrid tracking

3

Tracking accuracy

<10m (This data is for reference only, the tracking error is related to the terrain and environment of the terminal area)

4

Communications network

2G/3G/4G wireless network

5

Display screen

1.3 inch color screen, can display signal, power, date, week, time, ID, message, etc.

6

Operation buttons

Yes

7

Built-in battery

Built-in rechargeable 800mAh polymer lithium ion battery

8

Charging method

The buckle type wireless special charger, first fully charge the buckle type mobile power, and then buckle the mobile power to the watch to charge the watch. When charging, there is no need to connect the power cord, the wearer can walk freely

9

Voltage

DC 5V

10

Charging time

2 hours

11

Standby time

5 days standby time (tracking once per hour)

12

Material

Environmentally Friendly Plastic

13

Size

50*40*16mm (length, width and height)

14

Weight

About 64g

15

Waterproof and dustproof

IP68 level

16

Working environment

Working temperature: -30℃+60℃; Working humidity: 10%90%RH, no condensation


Video

Related

Through the GPS/Beidou/WIFI/LBS location information uploaded by the terminal, the system can realize the real-time tracking of the target, historical track query, virtual fence alarm and other functions. Widely used in vehicle management, personnel tracking, material tracking and other industries, the system design is simple and easy to use.

Car GPS tracker is an industrial-grade tracking product specially designed for location management of cars, motorcycles, and electric vehicles. The product collects GPS/Beidou location information, and sends the location information to the server through the 4G wireless network to achieve target tracking. The product adopts 9-90V wide voltage design, easy to install, combined with a powerful cloud tracking management platform and mobile phone APP, easy to use, and escort all kinds of cars around the clock.

Long standby GPS tracker is an industrial-grade tracking product designed for the location management of automobiles, motorcycles, and electric vehicles. The product collects location information such as GPS/Beidou/WIFI/LBS, and sends the location information to the server through the 4G wireless network to achieve target tracking. The product uses powerful magnets, easy to install, combined with a powerful cloud tracking management platform and mobile phone APP, rechargeable power supply design, easy to use, and escort all types of motor vehicles throughout the day.

The long standby GPS tracker is an industrial-grade tracking product specially designed for the location management of automobiles, motorcycles, and electric vehicles. The product collects location information such as GPS/Beidou/WIFI/LBS, and sends the location information to the server through the 4G wireless network to achieve target tracking. The product uses powerful magnets, easy to install, combined with a powerful cloud tracking management platform and mobile phone APP, easy to use, and escort all types of motor vehicles all day.

GPS tracking card is a professional tracking product designed for the location management of specific groups such as students/elderly/company employees. The product collects location information such as GPS/Beidou/WIFI/LBS, and sends the location information to the server through the 4G wireless network to achieve target tracking. The product combines a powerful cloud tracking management platform and mobile APP, which is easy to use.

Mini GPS tracker is a portable professional tracking product. The product collects location information such as GPS/Beidou/WIFI/LBS, and sends the location information to the server through the 4G wireless network to achieve target tracking. The product combines a powerful cloud tracking management platform and mobile APP, which is easy to use.

Pet GPS Tracker is a professional tracking product specially designed for pets. The product collects location information such as GPS/Beidou/WIFI/LBS, and sends the location information to the server through the 4G wireless network to realize pet tracking. The product combines a powerful cloud tracking management platform and mobile APP, which is easy to use.

The anti-tampering GPS tracking watch is a professional GPS tracking product, designed for special population management such as community correction, parole, residential surveillance, home isolation, Alzheimer's, and mental patients. The watch collects GPS/Beidou/WiFi/LBS tracking information, and sends the tracking information to the server through the 4G wireless network to realize the tracking of the watch. The product has a built-in tamper-proof sensor, which will alarm immediately after disassembly. The product protection level reaches IP68, simple operation and convenient use.

GPS elderly tracking watch is a professional tracking product designed for the elderly. The product collects GPS/Beidou/WIFI/LBS and other location information and heart rate, and sends the information to the server through the 4G wireless network to achieve target tracking and vital signs monitoring. The product combines a powerful cloud tracking management platform and mobile APP, which is easy to use.

GPS Ankle is a professional tracking product designed for community correction, parole, residential surveillance, Alzheimer's, mental patients and other special industry tracking applications. It includes GPS ankle, Curfew base station (optional) and management system. The GPS ankle collects GPS/Beidou/WiFi/LBS tracking information and uses the 4G wireless network to send the tracking information to the server to track the ankle. The ankle has a built-in conductive circuit, which will alarm immediately after disassembly. The ankle also has a built-in UWB high-precision ranging module (optional), combined with the Curfew base station, up to centimeter-level ranging accuracy, to determine whether the tracked target is in the designated area. The Curfew base station also has a built-in UWB high-precision ranging module. Once the distance between the ankle and the base station exceeds the preset threshold, the system will immediately alarm. The base station has a built-in motion sensor. Once the base station is moved, the system will immediately alarm.
