GPS Tracker

GPS Metal Ankle

GPS Metal Ankle

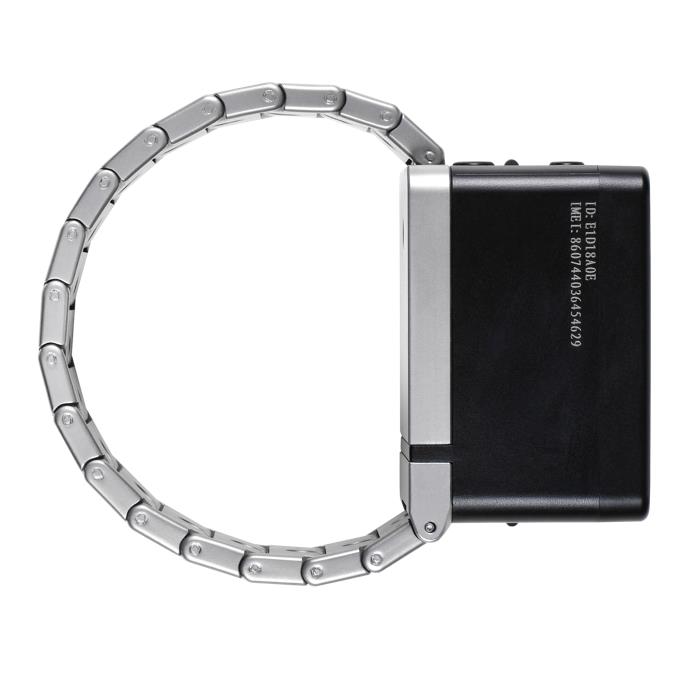

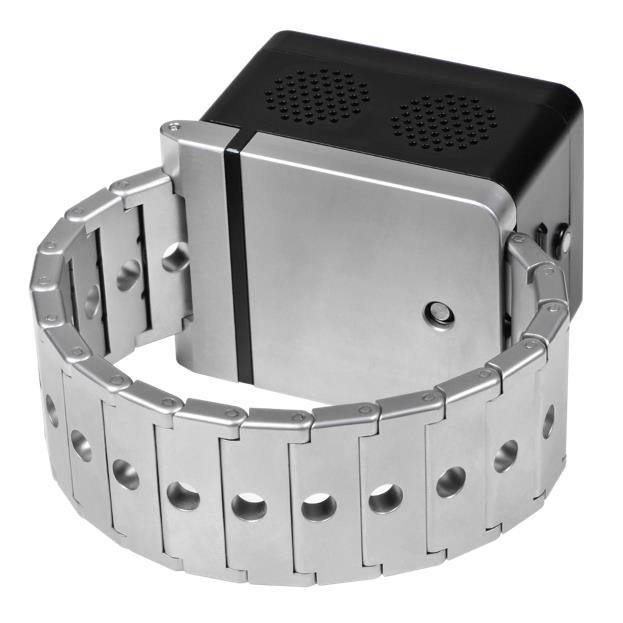

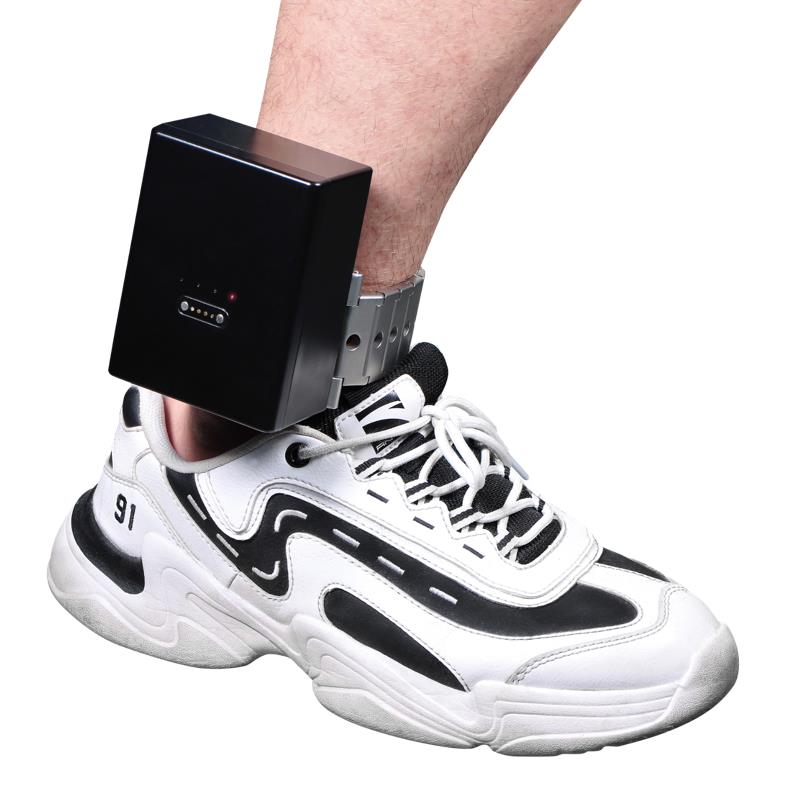

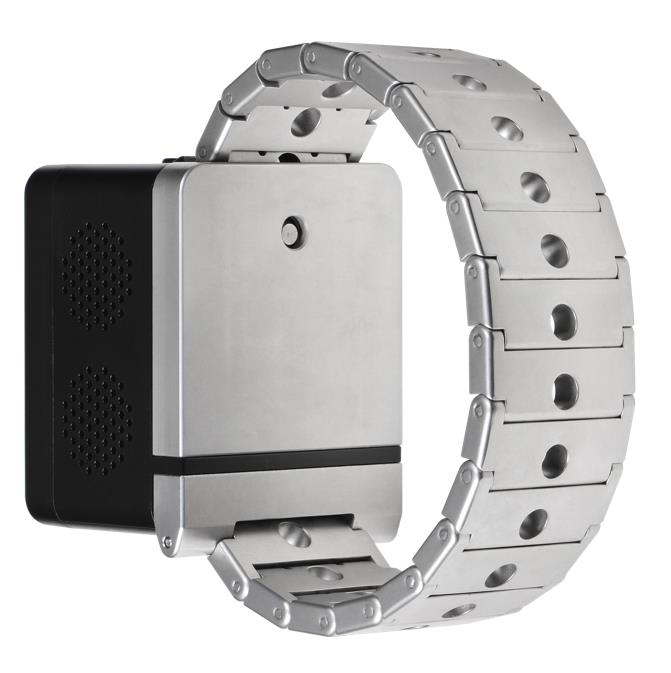

GPS Metal Ankle is an industrial-grade GPS tracking product, designed for location management of criminals, residential surveillance, Alzheimer's, and mental patients. The product collects GPS/Beidou/WiFi/LBS tracking information, and sends the tracking information to the server through the 4G wireless network to achieve target tracking. The product has a built-in UWB high-precision ranging sensor (optional), real-time distance measurement with the designated UWB card, once the distance exceeds the preset threshold, the system immediately alarms. The strap is made of high-strength stainless steel, which can withstand a pulling force of more than 200N. The super-B lock core can effectively prevent illegal opening. The product protection level reaches IP68. It is simple to operate and easy to use.

Vedio User's manual

Funtions

No.

Name

Description

1

Real-time tracking

GPS+Beidou+WiFi+LBS hybrid tracking, you can check the real-time and accurate position of the terminal at any time, and use different icons to mark different roles

2

Timing tracking

The terminal can automatically upload location information according to the set interval

3

Historical track

You can query the historical track of the terminal at any time

4

Virtual fence

Any area can be set as a virtual fence, and a period of time can be added to the fence. Once the terminal enters and exits the fence during this period, the system immediately alarms

5

Route planning

The administrator can pre-set the terminal walking route and time period. Once deviated from the designated route, the system will immediately alarm

6

Blind spot tracking

The terminal can store the location and alarm information when the mobile network is interrupted, and upload it automatically after the network signal is restored

7

Anti-tampering alarm

The strap has a built-in conduction circuit, once it is removed, the system will alarm immediately

8

High-decibel speaker

The terminal has a built-in 80 decibel high-decibel speaker, once the alarm is triggered, it will automatically play the customized voice content immediately

9

Over distance alarm

The product has a built-in UWB high-precision ranging sensor, real-time ranging with the designated card, once the distance exceeds the preset threshold, the system immediately alarms

10

Super Class B lock

Super B-class lock cylinder can effectively prevent illegal opening

11

Low power alarm

When the terminal power is less than 20%, a low power alarm is generated

12

Remote upgrade

Yes


GPS metal ankle Parameters (ankle can be used in conjunction with UWB card or used alone, there is no ranging function when used alone)

Specification

No.

Name

Parameter

1

Model

DDX13

2

Tracking method

GPS/Beidou/WIFI/LBS hybrid tracking

3

Tracking accuracy

<10m (This data is for reference only, the tracking error is related to the terrain and environment of the terminal area)

4

High-precision ranging

Built-in UWB high-precision ranging module, ranging accuracy up to 0.3 meters

5

Communications network

2G/3G/4G wireless network

6

Built-in battery

Built-in rechargeable 2500mAh polymer lithium ion battery

7

Charging method

The buckle-type wireless dedicated power bank, first fully charge the buckle-type power bank, and then buckle the power bank on the buckle for charging. When charging, there is no need to connect the power cord, the wearer can walk freely

8

Voltage

DC 5V

9

Charging time

2 hours

10

Standby time

24 hours (tracking once in 10 seconds)

11

Material

Metal strap + environmentally friendly plastic case

12

Size

70*56*47mm (length, width and height)

13

Weight

About 200g

14

Working environment

Working temperature: -30℃+60℃; Working humidity: 10%90%RH, no condensation


Ranging card Parameters

No.

Name

Parameter

1

Model

DDX07/TOF

2

High-precision ranging

Built-in UWB high-precision ranging module, ranging accuracy up to 0.3 meters

3

Built-in battery

Built-in rechargeable 1000mAh polymer lithium ion battery

4

Charging method

Magnetic charging

5

Voltage

DC 5V

6

Charging time

2 hours

7

Standby time

24 hours (tracking once in 10 seconds)

8

Material

Environmentally Friendly Plastic

9

Size

50*40*13.6mm (length, width and height)

10

Weight

About 45g

11

Working environment

Working temperature: -30℃+60℃; Working humidity: 10%90%RH, no condensation
