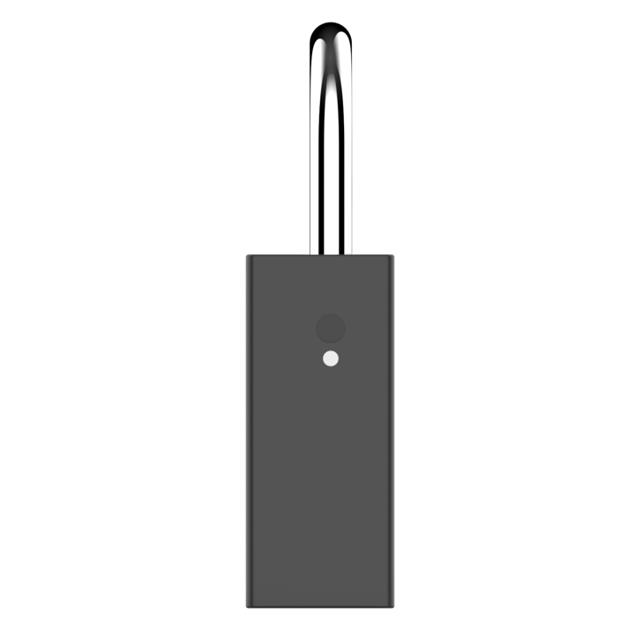

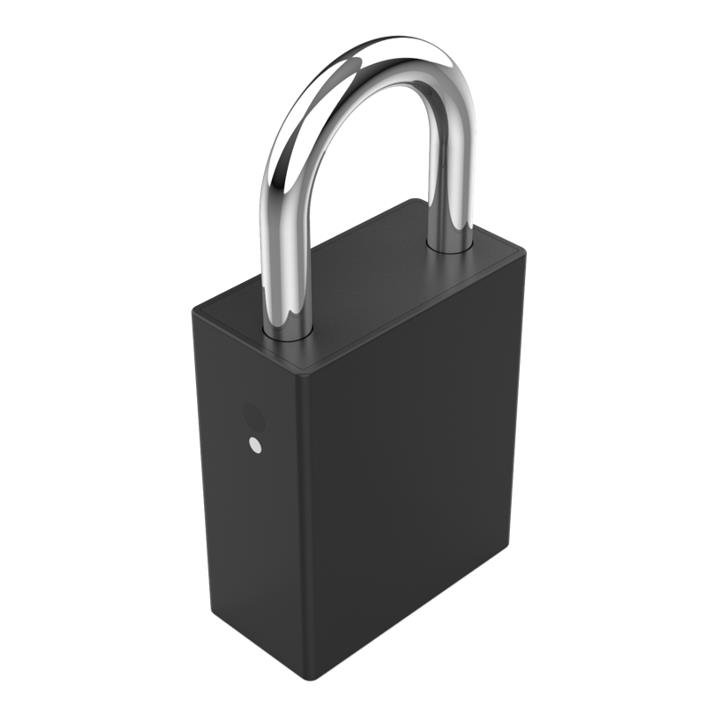

GPS lock is an industrial-grade tracking product specially designed for cargo location management in transportation. The product collects GPS/Beidou location information, and sends the location information to the server through the 4G wireless network to realize the tracking of the goods. The product design is simple, combined with a powerful cloud tracking management platform and mobile phone APP, rechargeable power supply design, easy to use.

Vedio User's manual

Funtions

No.

Name

Description

1

Swipe to unlock

Can use the matching NFC card to swipe to unlock and manually lock

2

Automatic tracking

Once the lock is closed, GPS/Beidou tracking is automatically turned on. The tracking frequency is tracking once every 10 seconds by default, and the frequency can be set; once the lock is opened, it will automatically stop tracking and enter deep sleep mode.

3

Historical track

You can view the historical trajectory of the tracking target at any time period and show it on the map

4

Virtual fence

Some key areas can be set as virtual fences, once the tracking target enters and exits the fence, the system will immediately alarm

5

Low battery alarm

When the terminal power is less than 20%, a low battery alarm is generated

6

Remote upgrade

Yes


Specification

No.

Name

Description

1

Model

G07

2

Tracking method

GPS and Beidou hybrid tracking

3

Tracking accuracy

Up to 5 meters

4

Communication network

2G/3G/4G

5

Material

ABS+PC

6

button

Yes

7

External Interface

Magnetic charging and data interface

8

Indicator light

Power and working indicator

9

battery

Built-in rechargeable 1000mAh polymer lithium ion battery

10

Standby time

30 days standby time

11

Charging time

2 hours

12

Charging voltage

5V

13

waterproof

IP67

14

Size

50*100*20mm (length*width*height)

15

Weight

About 80g

16

Operating temperature

-20℃~+75℃

17

Storage temperature

-40℃~+85℃
