Pet Trackers

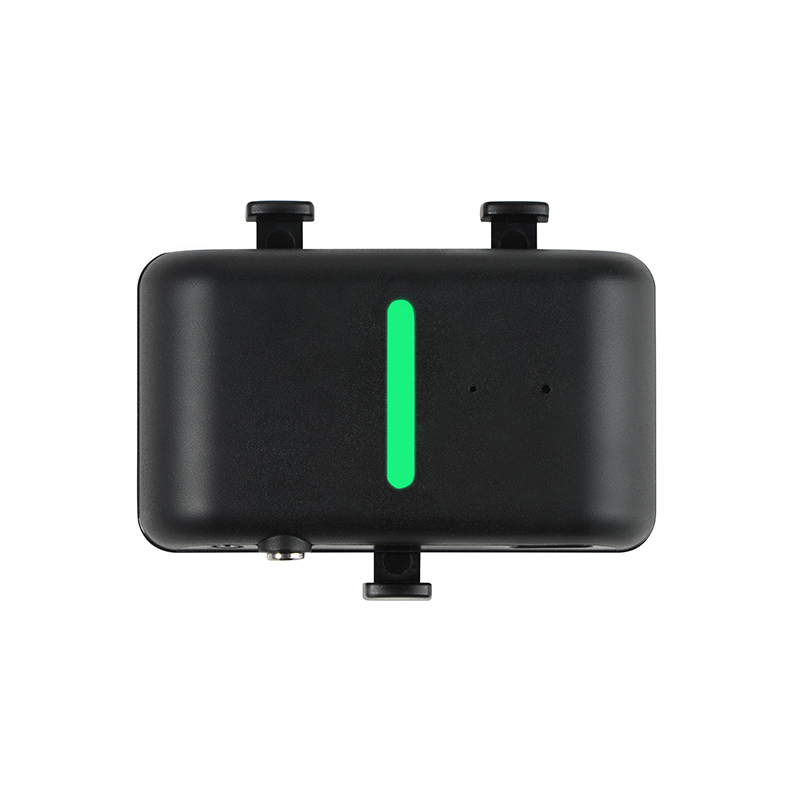

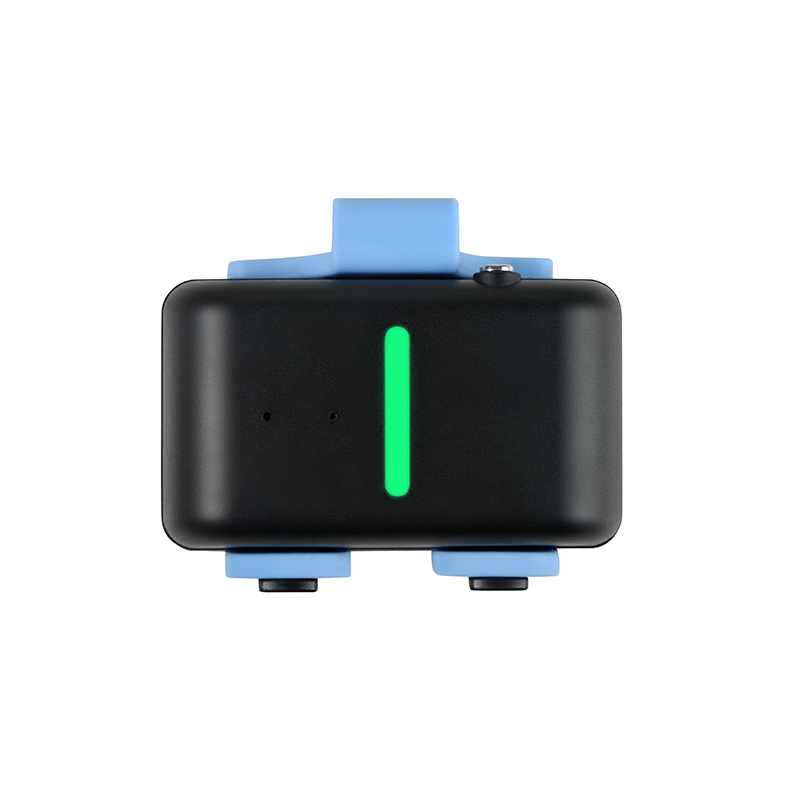

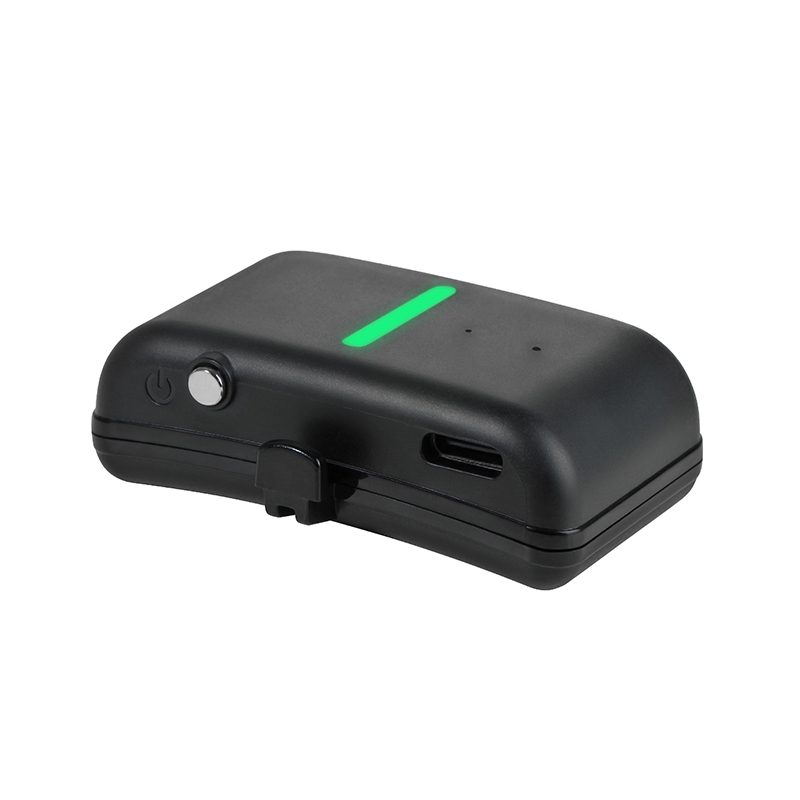

Cat M/NB iot Pet GPS Tracker

Cat M/NB iot Pet GPS Tracker

P01

This professional pet GPS tracker is designed to provide reliable location tracking for dogs, cats and other pets. Supporting GPS, BeiDou, GLONASS, Galileo, BDS, A-GPS and LBS positioning technologies, the device transmits location data through Cat-M and NB-IoT networks for accurate and reliable pet tracking.

Connected to a cloud-based GPS tracking platform and mobile app, it enables convenient remote monitoring and real-time location management, helping pet owners keep track of their pets wherever they go.

Vedio User's manual

Funtions

No.

Function Item

Description

1

Real time tracking

The system can view the terminal location in real-time through the APP (iOS/Android) or PC

2

Historical route

The system supports viewing the historical route of the terminal at any time period

3

Virtual fence

The system can customize the virtual fence area, and the terminal entering and leaving the fence will immediately trigger an alarm

4

Power saving mode

The system can add multiple Bluetooth beacons, and the terminal will automatically enter sleep mode after recognizing the specified Bluetooth beacon

5

Immediate Pet Hunting

The system combines real-time tracking, ringtone playback, flashing lights, and Bluetooth signals to quickly track the terminal

6

Automatic pet calling

When the terminal leaves the fence, it automatically plays a ringtone and guides the pet back to the virtual fence

7

Sports monitoring

The terminal can recognize stationary, walking, running, and other states, and the system can count the duration of movement, calorie consumption, and sleep quality

8

Automatic sleep mode

The terminal automatically enters sleep mode when it is stationary to save power

9

Low battery alarm

When the terminal battery level drops below 20%, a low battery alarm is triggered

10

Alarm management

The system supports alarms for entering and exiting fences, low power, etc., and supports custom prompt sounds

11

Blind spot supplementary transmission

The terminal supports storing location and alarm data in case of network interruption, and automatically resends them after the connection is restored

12

Thermal map

The system can generate a historical activity thermal map of the terminal, allowing you to view the daily activity areas of the terminal

13

Remote upgrade

The system supports firmware OTA updates


Specification

No.

Parameter Item

Specifications

1

Product Name

P01 Pet Tracker

2

Model

P01

3

Tracking method

GPS / BDS /Galileo / GLONASS / SBAS / A-GPS / LBS / WiFi /  Bluetooth

4

Tracking accuracy

The terminal can achieve maximum tracking accuracy of 3 meters in open environments

5

Tracking frequency

The terminal tracks once every minute in its default motion state, Automatic sleep mode when stationary, and supports custom settings

6

Tracking trigger

The terminal supports motion triggered tracking or timed tracking

7

Location information

Location information includes IMEI, time, serial number, latitude and longitude, speed, number of satellites and signals, 4G signal, battery level, charging status, etc

8

Data transmission

4G network

9

SIM card

Nano SIM card built into the terminal

10

Battery

Built in 670mAh rechargeable battery

11

Charging interface

Type-C

12

Charging time

about 2 hours

13

Battery life

about 3 days (calculated based on 8 hours of movement per day, poor communication signal and GPS environment will shorten the battery life)

14

Buzzer

Supports

15

Shell material

ABS+PC environmentally friendly plastic

16

Protection level

IP68

17

Installation method

Silicone mounting bracket

18

Size

32 × 55 × 17 mm (width × length × thickness)

19

Weight

35g

20

Terminal number

The terminal uses the IMEI number of the communication module as the unique terminal number

21

Tracking Platform

We provide a tracking management platform that supports API push data to third-party systems

22

Working temperature

-20 ℃~60 ℃


Video

Related

This professional 4G pet GPS tracker is designed for reliable location tracking of dogs, cats and other pets. Supporting GPS, BeiDou (BDS), GLONASS, Galileo, A-GPS and LBS positioning technologies, it transmits location data through 4G networks for accurate and real-time pet tracking.

Connected to a cloud-based GPS tracking platform and mobile app, the pet tracker enables convenient remote monitoring and location management, helping pet owners keep track of their pets wherever they go.

Pet GPS Tracker is a professional tracking product specially designed for pets. The product collects location information such as GPS/Beidou/WIFI/LBS, and sends the location information to the server through the 4G wireless network to realize pet tracking. The product combines a powerful cloud tracking management platform and mobile APP, which is easy to use.
