GPS Ankle & Bracelet

Tamper-proof GPS Bracelet

Tamper-proof GPS Bracelet

DDX04

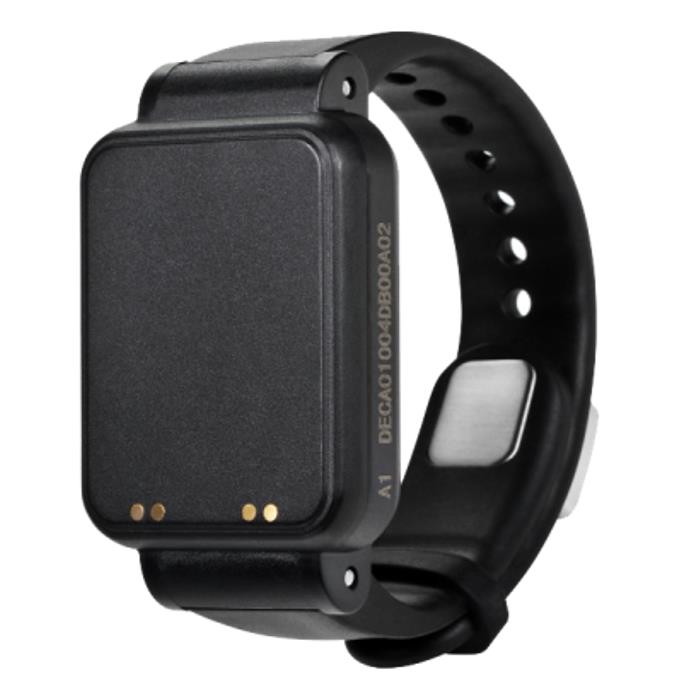

The anti-tampering GPS tracking watch is a professional GPS tracking product, designed for special population management such as community correction, parole, residential surveillance, home isolation, Alzheimer's, and mental patients. The watch collects GPS/Beidou/WiFi/LBS tracking information, and sends the tracking information to the server through the 4G wireless network to realize the tracking of the watch. The product has a built-in tamper-proof sensor, which will alarm immediately after disassembly. The product protection level reaches IP68, simple operation and convenient use.

Vedio User's manual

Funtions

No.

Name

Description

1

Real-time tracking

GPS+Beidou+WiFi+LBS hybrid tracking, you can check the real-time and accurate position of the terminal at any time, and use different icons to mark different roles

2

Timing tracking

The terminal can automatically upload location information according to the set interval

3

Historical track

You can query the historical track of the terminal at any time

4

Virtual fence

Any area can be set as a virtual fence, and a period of time can be added to the fence. Once the terminal enters and exits the fence during this period, the system immediately alarms

5

Message receiving

The terminal can receive messages and setting instructions pushed by the platform

6

Anti-tampering alarm

The strap has a built-in conduction circuit, once it is removed, the system will alarm immediately

7

Heart rate

Built-in heart rate sensor, you can monitor vital signs data at any time

8

Motion sensor

Built-in motion sensor, you can monitor the wearer’s daily step count at any time

9

Low power alarm

When the terminal power is less than 20%, a low power alarm is generated

10

Remote upgrade

Yes


Specification

No.

Name

Parameter

1

Model

DDX04

2

Tracking method

GPS/Beidou/WIFI/LBS hybrid tracking

3

Tracking accuracy

<10m (This data is for reference only, the tracking error is related to the terrain and environment of the terminal area)

4

Communications network

2G/3G/4G wireless network

5

Display screen

1.3 inch color screen, can display signal, power, date, week, time, ID, message, etc.

6

Operation buttons

Yes

7

Built-in battery

Built-in rechargeable 800mAh polymer lithium ion battery

8

Charging method

The buckle type wireless special charger, first fully charge the buckle type mobile power, and then buckle the mobile power to the watch to charge the watch. When charging, there is no need to connect the power cord, the wearer can walk freely

9

Voltage

DC 5V

10

Charging time

2 hours

11

Standby time

5 days standby time (tracking once per hour)

12

Material

Environmentally Friendly Plastic

13

Size

50*40*16mm (length, width and height)

14

Weight

About 64g

15

Waterproof and dustproof

IP68 level

16

Working environment

Working temperature: -30℃+60℃; Working humidity: 10%90%RH, no condensation
