Portable GPS Trackers

Small GPS Tracker for Cars/Assets

Small GPS Tracker for Cars/Assets

X21

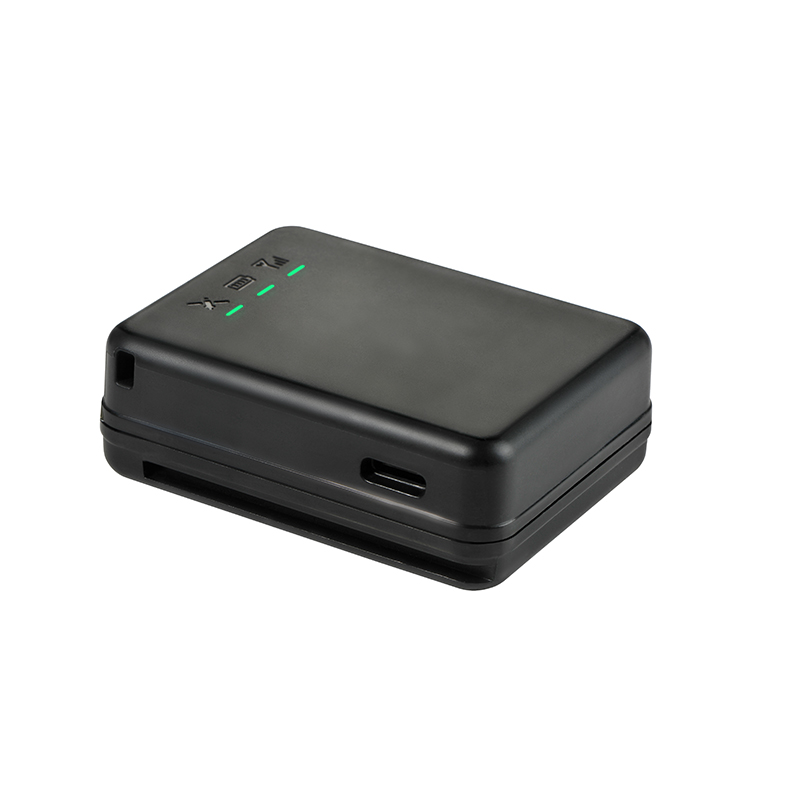

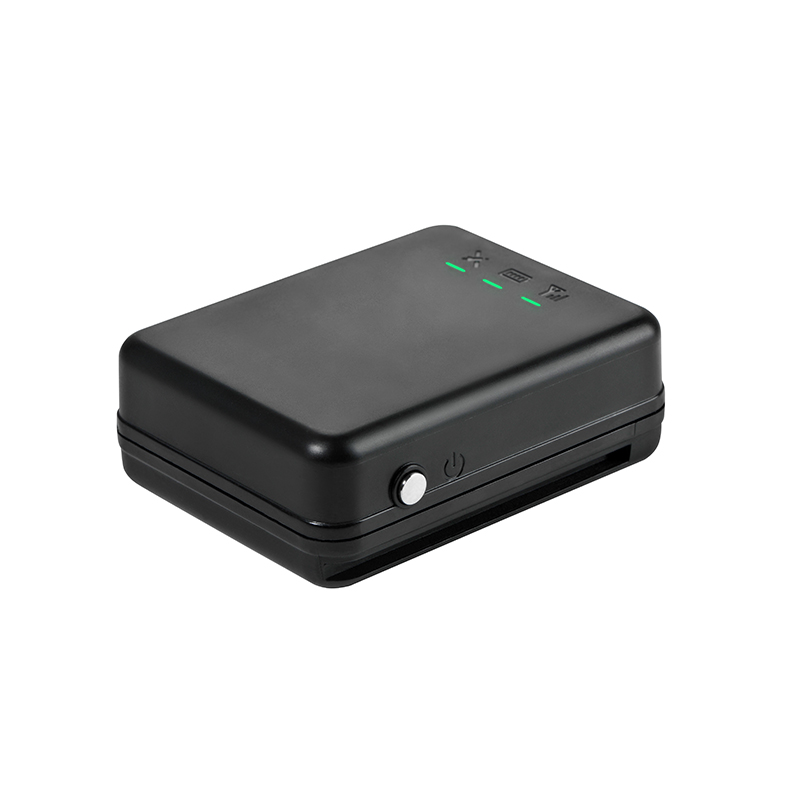

This small GPS tracker is an industrial-grade GPS tracking device designed for reliable location monitoring across a wide range of applications. Supporting GPS, BeiDou, GLONASS, Galileo, A-GPS and LBS positioning technologies, it provides accurate location information and real-time tracking. With 4G wireless connectivity, the device transmits location data to a secure server, enabling remote monitoring, location management and GPS tracking through a cloud-based platform and mobile app.

With a rechargeable battery and powerful magnetic mount, this compact GPS tracking device is easy to install and suitable for personal and family safety, personnel monitoring, vehicle security, fleet and logistics management, and finance and insurance applications.

Vedio User's manual

Funtions

No.

Name

Description

1

Real time tracking

The system can view the location of the terminal in real-time through an app (iOS/Android) or PC

2

Historical route

The system supports viewing the historical route of the terminal at any time period

3

Virtual fence

The system can customize the virtual fence area, and an alarm will be triggered when the terminal enters or exits the fence

4

Alarm management

The system supports alarms for entering and exiting fences, low power, and movement, and supports custom prompt sounds

5

Automatic sleep mode

The terminal automatically enters sleep mode when it is stationary to save power

6

Blind spot supplementary transmission

The terminal supports storing tracking and alarm data in case of network interruption, and automatically resends it after the connection is restored

7

Thermal map

The system can generate a historical activity thermal map of the terminal, allowing you to view the daily activity areas of the terminal

8

Remote upgrade

The system supports firmware OTA updates


Specification

No.

Name

Parameter

1

Model

X21

2

Tracking methods

GPS/BDS/Galileo/GLONASS/A-GPS/LBS/WiFi/Bluetooth

3

Tracking accuracy

The terminal can achieve maximum accuracy of 3 meters in open environments

4

Tracking frequency

The terminal tracks once every minute in its default motion state, Automatic sleep mode when stationary, and supports custom settings

5

Tracking trigger

The terminal supports motion triggered tracking or timed tracking

6

Location information

Location information includes IMEI, time, serial number, latitude and longitude, speed, number of satellites and signals, 4G signal, battery level, charging status, etc

7

Blind spot supplementary transmission

The terminal supports storing tracking and alarm data in case of network interruption, and automatically resends it after the connection is restored

8

Data transmission

4G network

9

SIM card

Built in Nano SIM card

10

Battery

Built in 1200mAh rechargeable battery

11

Charging interface

Type C

12

Charging time

about 2 hours

13

Battery life

about 6 days (calculated based on 8 hours of movement per day, poor communication signal and GPS environment will shorten the battery life)

14

Indicator lights

Power, 4G, and GPS indicator lights

15

Shell material

ABS+PC environmentally friendly plastic

16

Protection level

IP68

17

Size

43 * 56 * 19 mm (width x length x thickness)

18

Weight

50g

19

Terminal number

The terminal uses the IMEI number of the communication module as the unique terminal number

20

Tracking Platform

We provide a tracking management platform that supports API push data to third-party systems

21

Working temperature

-20 ℃~60 ℃

Video

Related

Through the GPS/Beidou/WIFI/LBS location information uploaded by the terminal, the system can realize the real-time tracking of the target, historical track query, virtual fence alarm and other functions. Widely used in vehicle management, personnel tracking, material tracking and other industries, the system design is simple and easy to use.

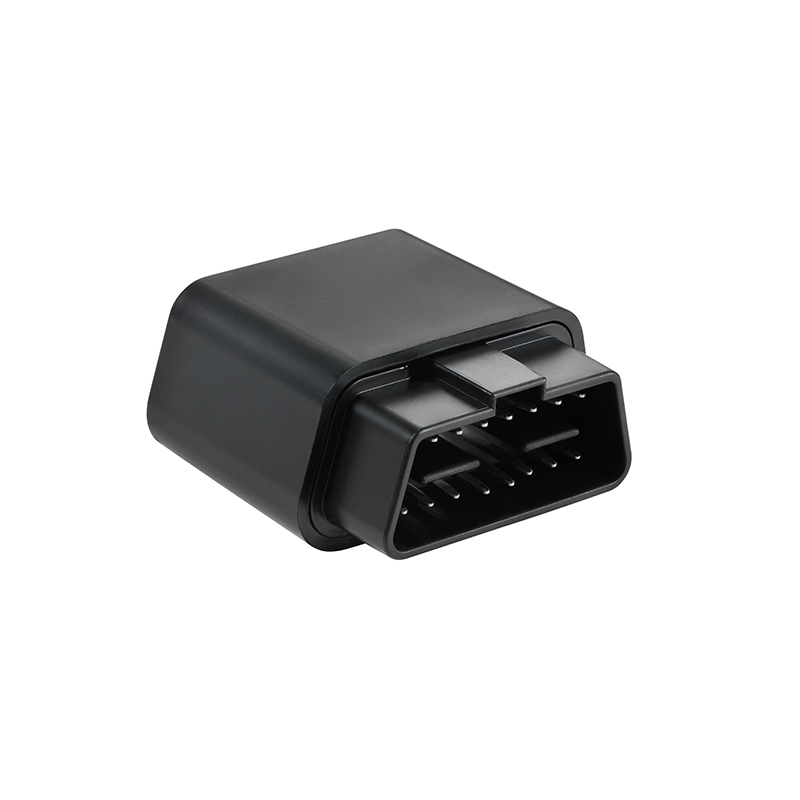

This industrial-grade 4G OBD GPS tracker is designed for real-time vehicle location tracking, health monitoring and fleet management. Supporting GPS, BeiDou, GLONASS, Galileo, A-GPS and LBS positioning, it transmits location data through 4G networks for accurate remote vehicle tracking and location management.

The OBD vehicle tracker supports the ISO 15765-4 CAN protocol to read vehicle data for diagnostics and status monitoring. It is ideal for vehicle security and management, fleet and logistics tracking, vehicle maintenance and health monitoring, and finance and insurance applications.

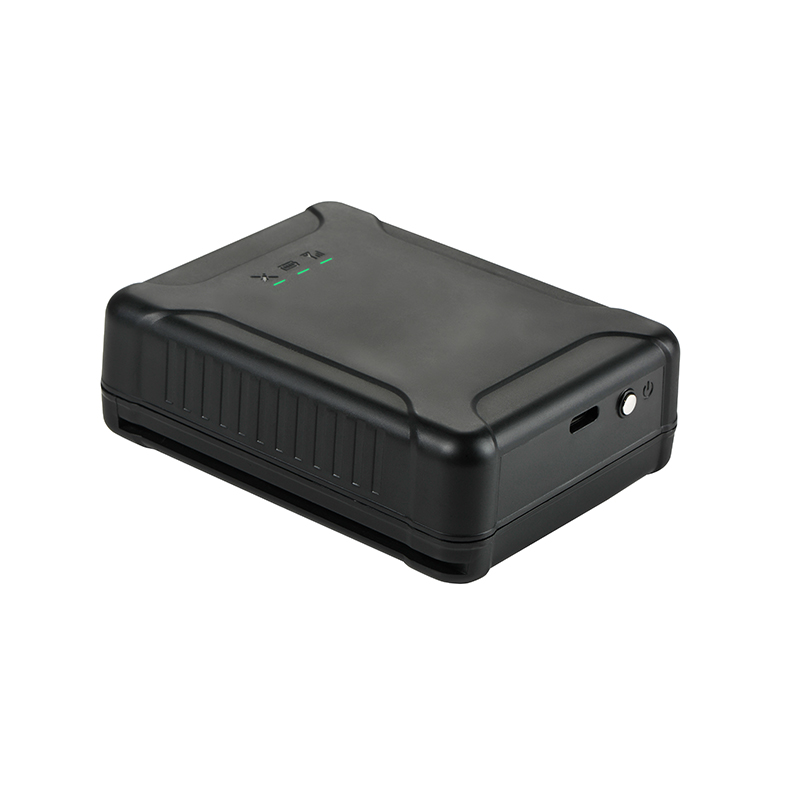

Long standby GPS tracker is an industrial-grade tracking product designed for the location management of automobiles, motorcycles, and electric vehicles. The device supports GPS, BeiDou, GLONASS, Galileo, A-GPS and LBS positioning technologies to provide accurate location information and real-time tracking. Through a 4G wireless network, tracking data is transmitted to a secure server, enabling remote vehicle tracking and location management. The product uses powerful magnets, easy to install, combined with a powerful cloud tracking management platform and mobile phone APP, rechargeable power supply design, easy to use, and escort all types of motor vehicles throughout the day.

This small GPS tracker is an industrial-grade GPS tracking device designed for reliable location monitoring across a wide range of applications. Supporting GPS, BeiDou, GLONASS, Galileo, A-GPS and LBS positioning technologies, it provides accurate location information and real-time tracking. With 4G wireless connectivity, the device transmits location data to a secure server, enabling remote monitoring, location management and GPS tracking through a cloud-based platform and mobile app.

With a rechargeable battery and powerful magnetic mount, this compact GPS tracking device is easy to install and suitable for personal and family safety, personnel monitoring, vehicle security, fleet and logistics management, and finance and insurance applications.

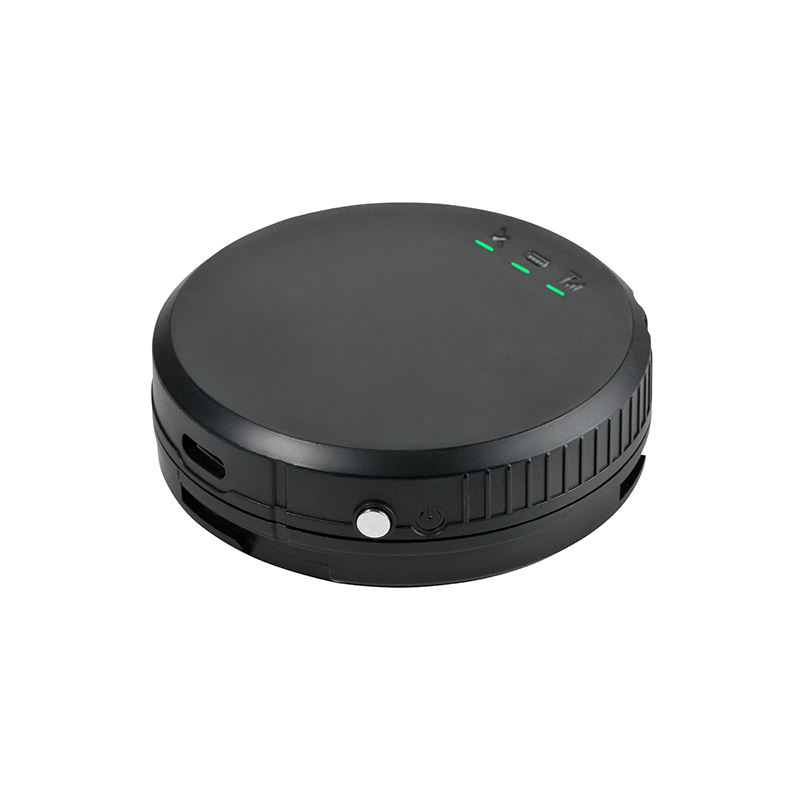

Mini GPS tracker is a portable professional tracking product. The product collects location information such as GPS/Beidou/WIFI/LBS, and sends the location information to the server through the 4G wireless network to achieve target tracking. The product combines a powerful cloud tracking management platform and mobile APP, which is easy to use.
